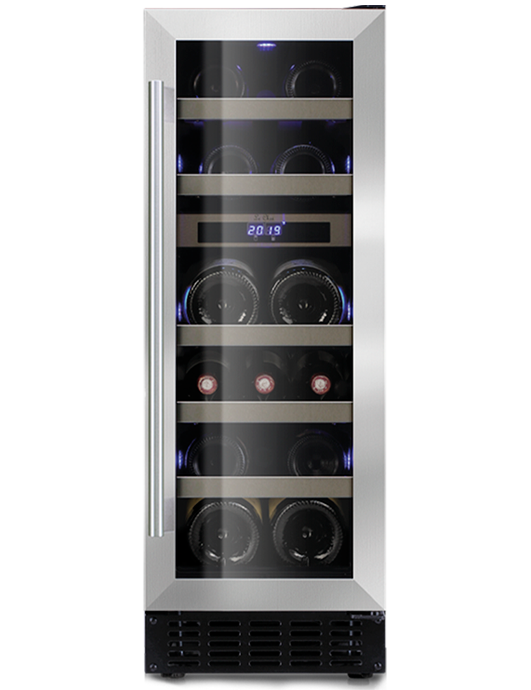

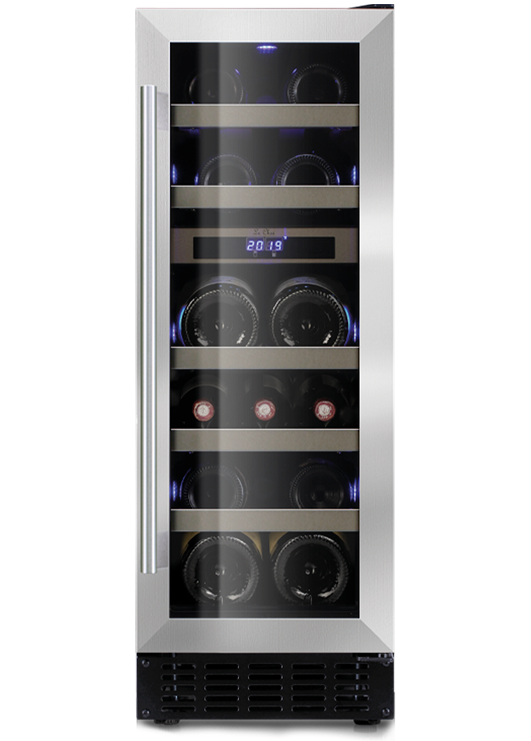

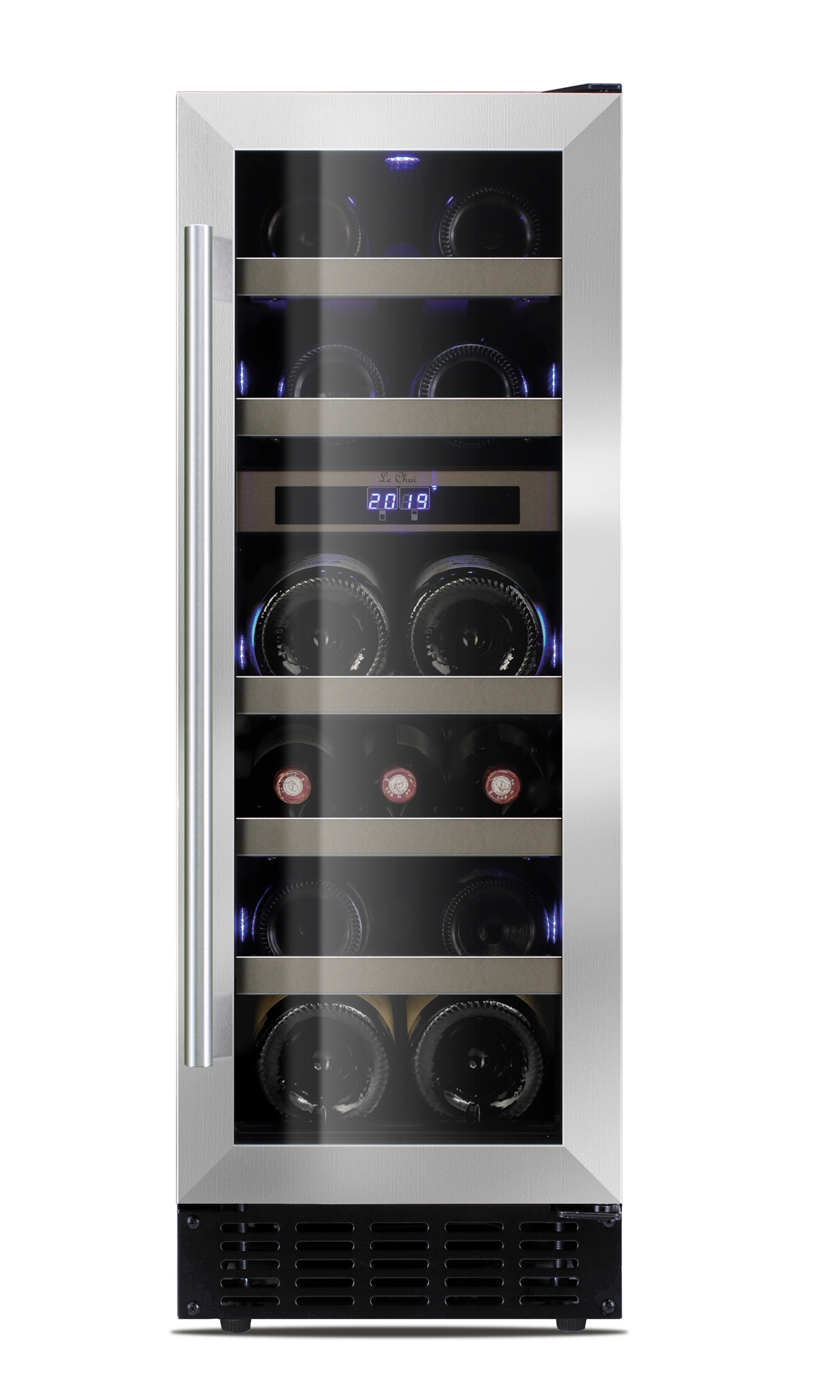

Built-in storage and service wine cabinet
Stainless steel
EAN : 3260449041614
EAN : 3260449041621

Main Features

  • Type: Built-in range
  • external handle Stainless steel
  • 4 + 1 half clayettes wood with Stainless steel trim
  • 17040208 Sliding shelf
  • 2 : adjustable over 7 cm Adjustable feet
  • Temperature upper zone

      +5°C - +10°C
  • Lower zone temperature

      • +15°C - +20°C

Dimensions in mm

Packed (HxWxD) 865 x 326 x 628mm
Unpacked (HxWxD) 820 x 295 x 572 mm
*Capacity in Bordeaux-format bottles
**prices provided for information purposes only; sale prices set by distributors may vary


2 zones: Lower and upper zone offering 2 different temperatures with individual settings to keep and set your bottles at the ideal serving temperature.

82 cm under top: Minimum height under worktop for kitchen door of 72 cm height.

Main features
Type of installation Built-in range
Type of conservation Service and conservation wine cabinet
Bordeaux bottle capacity 16
Zone 2
Color Stainless steel
Energy class A
Temperature setting 5 bottles
Conservation 11 bottles
In option in option, the plinth in stainless steel color ref : 17040283
Trunk and door features
Trunk and door features Black color
Door frame Stainless steel
Door glazing 3 glasses, anti-UV treated glass
Door hinge Right
Reversible door Yes
Type of handle external handle
Handle color Stainless steel
Door Lock No
Adjustable feet 2 : adjustable over 7 cm
Inside features
Control panel Sensitive with digital LED display
Display color Blue
Number of temperature zones 2
Temperature range +5°C - +20°C
Temperature upper zone +5°C - +10°C
Lower zone temperature • +15°C - +20°C
Interior lighting with switch Yes
Color interior lighting Blue LED
Total number of shelves 4 + 1 half
Sliding shelf 17040208
Type of shelf wood
Shelf finishing Stainless steel trim
Functions and safety
Charcoal filter No
Humidity system Yes
Anti-vibration system Yes
Open door alarm Yes
Temperature alarm (outside the t°C range) Yes
Winter function No
Soft close No
Automatic door closing No
Cellar register No
Multi-colour lighting function No
Alarme d'humidité (en dehors des plages) No
Automatic lock panel control No
Technical data
Energy class A
Climatic class ST (+16°C à +38°C)
Power consumption in kWh/24h 0,381
Power consumption in kWh/year 139
Sound level 39
Frequency (Hz) 50
Voltage (V) 230
Type of gas R600a
Type of cold Ventilated cooling
Logistics data
Packed dimensions (HxLxP) 865 x 326 x 628mm
Unpacked dimensions (HxLxP) 820 x 295 x 572 mm
Gross weight with packaging (Kg) 29
Net weight of the product (Kg) 27
Energy label Notice Diagram Photo
