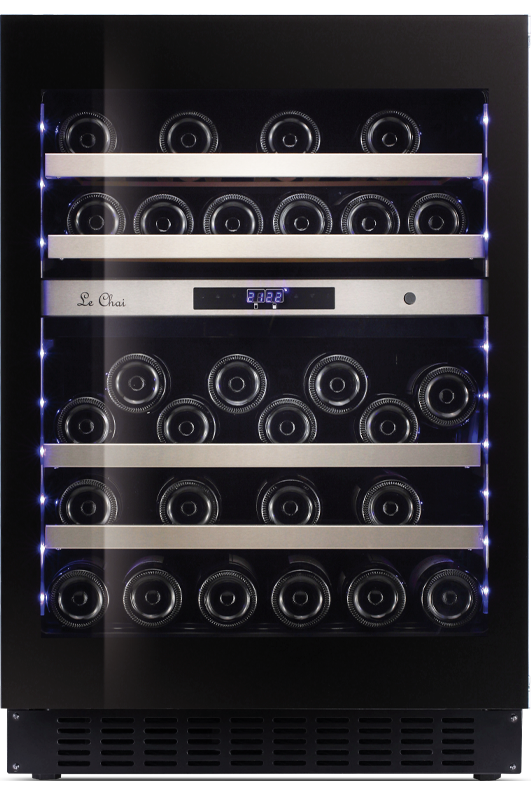

Built-in storage and service wine cabinet
EAN : 3260449044523

Main Features

  • Type: Built-in range
  • Push-Open (without handle)
  • 4 clayettes wood with Stainless steel trim
  • 17040345 Sliding shelf
  • 4 : adjustable over 7 cm Adjustable feet
  • Temperature upper zone

      +5°C - +10°C
  • Lower zone temperature

      • +15°C - +20°C

Dimensions in mm

Packed (HxWxD) 930 x 628 x 660 mm
Unpacked (HxWxD) 880 x 595 x 556 mm
*Capacity in Bordeaux-format bottles
**prices provided for information purposes only; sale prices set by distributors may vary


• 2 zones : Lower and upper zone offering 2 different temperatures with individual settings to keep and set your bottles at the ideal serving temperature.

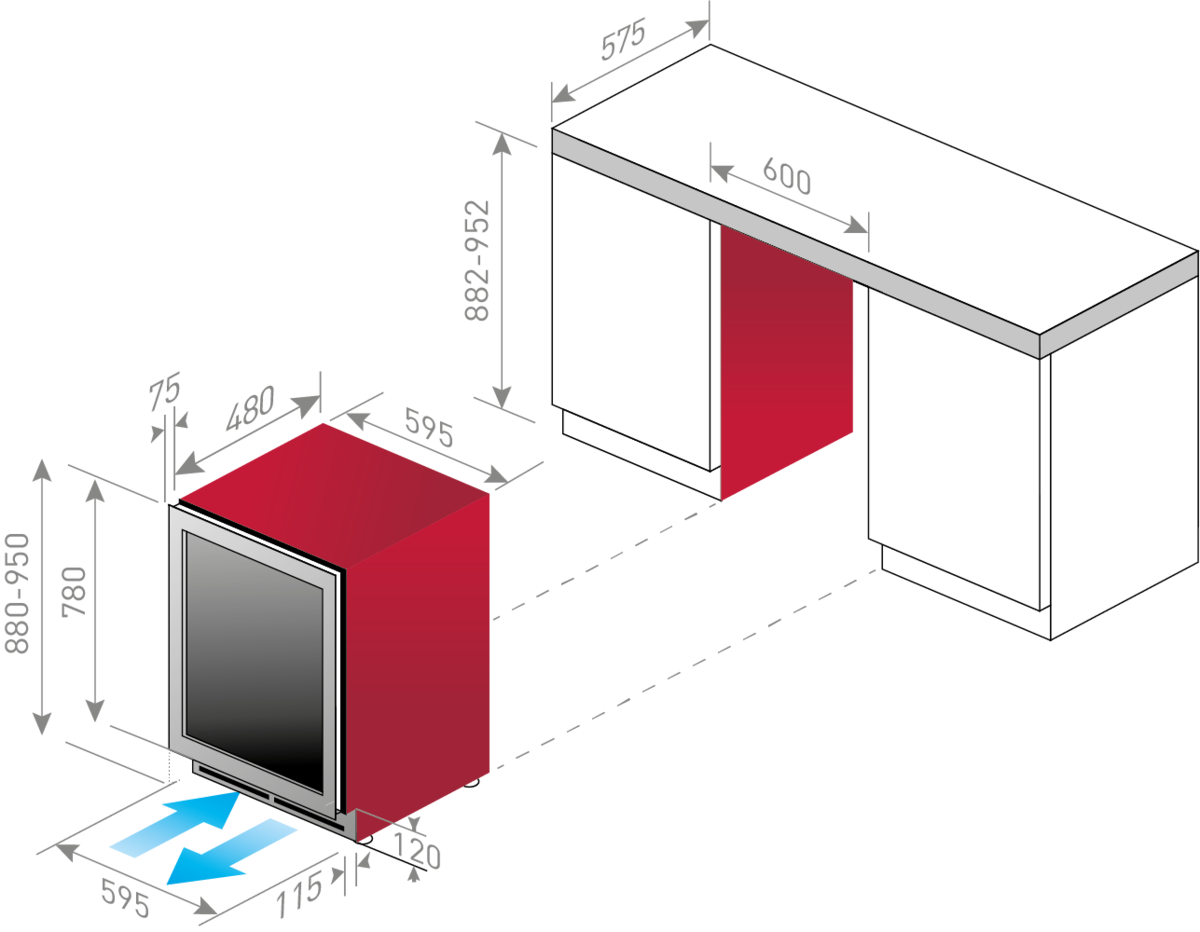

• 88 cm under top: Minimum height under worktop for kitchen door of 78 cm height.
• Push-Open : Its design is ideal for kitchens without handles, and even with loaded hands you can open your cellar with a simple push thanks to the assisted opening. In the event of unintentional opening, the door closes automatically.

Main features
Type of installation Built-in range
Type of conservation Service and conservation wine cabinet
Bordeaux bottle capacity 45
Zone 2
Color Black
Energy class A
Temperature setting 15 bottles
Conservation 30 bottles
Trunk and door features
Trunk and door features Black color
Door frame Black glass
Door glazing 3 glasses, anti-UV treated glass
Door hinge Right
Hinge type Pantograph type hinges
Reversible door Yes
Type of handle Push-Open (without handle)
Door Lock No
Adjustable feet 4 : adjustable over 7 cm
Inside features
Control panel Sensitive with digital LED display
Display color Blue
Number of temperature zones 2
Temperature range +5°C - +20°C
Temperature upper zone +5°C - +10°C
Lower zone temperature • +15°C - +20°C
Interior lighting with switch Yes
Color interior lighting Blue LED
Total number of shelves 4
Sliding shelf 17040345
Type of shelf wood
Shelf finishing Stainless steel trim
Functions and safety
Charcoal filter No
Humidity system Yes
Anti-vibration system Yes
Open door alarm No
Temperature alarm (outside the t°C range) Yes
Winter function No
Soft close Yes
Automatic door closing Yes
Cellar register No
Multi-colour lighting function No
Alarme d'humidité (en dehors des plages) No
Automatic lock panel control No
Technical data
Energy class A
Climatic class ST (+16°C à +38°C)
Power consumption in kWh/24h 0,397
Power consumption in kWh/year 145
Sound level 40
Frequency (Hz) 50
Voltage (V) 230
Type of gas R600a
Type of cold Ventilated cooling
Logistics data
Packed dimensions (HxLxP) 930 x 628 x 660 mm
Unpacked dimensions (HxLxP) 880 x 595 x 556 mm
Gross weight with packaging (Kg) 56
Net weight of the product (Kg) 52
Energy label Notice Diagram Photo
