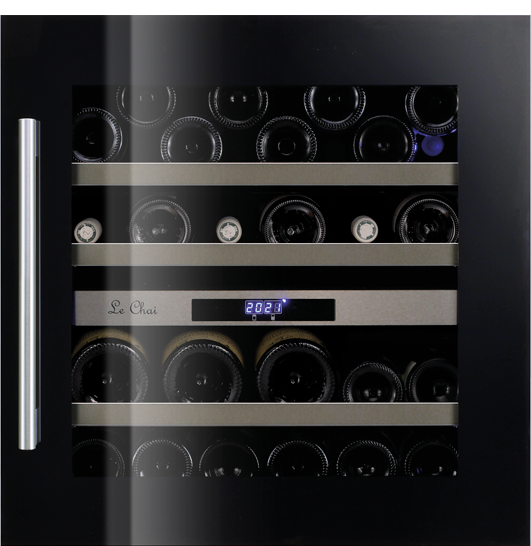

Built-in storage and service wine cabinet
EAN : 3260449041645
Stainless steel
EAN : 3260449041638

Main Features

  • Type: Built-in range
  • external handle Stainless steel
  • 3 clayettes wood with Stainless steel trim
  • 17040136 Sliding shelf
  • 2 Adjustable feet
  • Temperature upper zone

      +5°C - +10°C
  • Lower zone temperature

      • +10°C - +22°C

Dimensions in mm

Packed (HxWxD) 655 x 650 x 650 mm
Unpacked (HxWxD) 595 x 590 x 563 mm
*Capacity in Bordeaux-format bottles
**prices provided for information purposes only; sale prices set by distributors may vary


• 2 zones : Lower and upper zone offering 2 different temperatures with individual settings to keep and set your bottles at the ideal serving temperature.

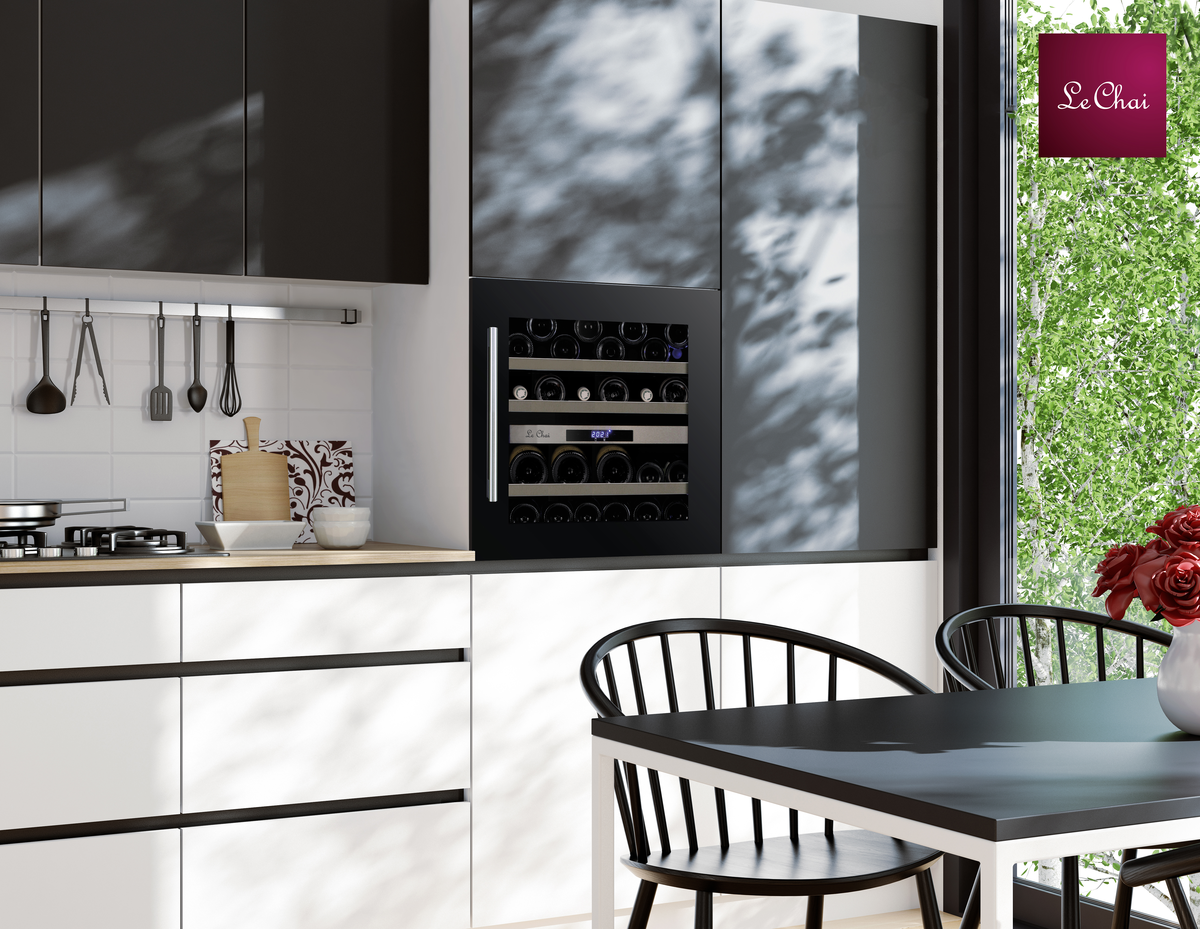

• Niche 60 cm : Installation height in the recess of the tall cabinet corresponding to a standard oven installation.

Main features
Type of installation Built-in range
Type of conservation Service and conservation wine cabinet
Bordeaux bottle capacity 34
Zone 2
Color Black
Energy class A
Temperature setting 22 bottles
Conservation 12 bottles
Trunk and door features
Trunk and door features Black color
Door frame Black glass
Door glazing 3 glasses, anti-UV treated glass
Door hinge Right
Reversible door Yes
Type of handle external handle
Handle color Stainless steel
Door Lock No
Adjustable feet 2
Inside features
Control panel Sensitive with digital LED display
Display color Blue
Number of temperature zones 2
Temperature range +5°C - +22°C
Temperature upper zone +5°C - +10°C
Lower zone temperature • +10°C - +22°C
Interior lighting with switch Yes
Color interior lighting Blue LED
Total number of shelves 3
Sliding shelf 17040136
Type of shelf wood
Shelf finishing Stainless steel trim
Functions and safety
Charcoal filter No
Humidity system Yes
Anti-vibration system Yes
Open door alarm No
Temperature alarm (outside the t°C range) Yes
Winter function No
Soft close No
Automatic door closing No
Cellar register No
Multi-colour lighting function No
Alarme d'humidité (en dehors des plages) No
Automatic lock panel control No
Technical data
Energy class A
Climatic class ST (+16°C à +38°C)
Power consumption in kWh/24h 0,384
Power consumption in kWh/year 140
Sound level 39
Frequency (Hz) 50
Voltage (V) 230
Type of gas R600a
Type of cold Ventilated cooling
Logistics data
Packed dimensions (HxLxP) 655 x 650 x 650 mm
Unpacked dimensions (HxLxP) 595 x 590 x 563 mm
Gross weight with packaging (Kg) 36
Net weight of the product (Kg) 32
