Built-in storage and service wine cabinet
EAN : 3260449042673
EAN : 3260449042666

Main Features

  • Type: Built-in Self-ventilated
  • Push-Open (without handle)
  • 5 clayettes wood with Stainless steel trim
  • 4 Telescopic shelves on rails
  • 17040143 Display shelf
  • 2 Adjustable feet
  • Temperature upper zone

      +5°C - +10°C
  • Lower zone temperature

      • +10°C - +20°C

Dimensions in mm

Packed (HxWxD) 970 x 660 x 660 mm
Unpacked (HxWxD) 885 x 592 x 559 mm
*Capacity in Bordeaux-format bottles
**prices provided for information purposes only; sale prices set by distributors may vary


• 2 zones : Lower and upper zone offering 2 different temperatures with individual settings to keep and set your bottles at the ideal serving temperature.

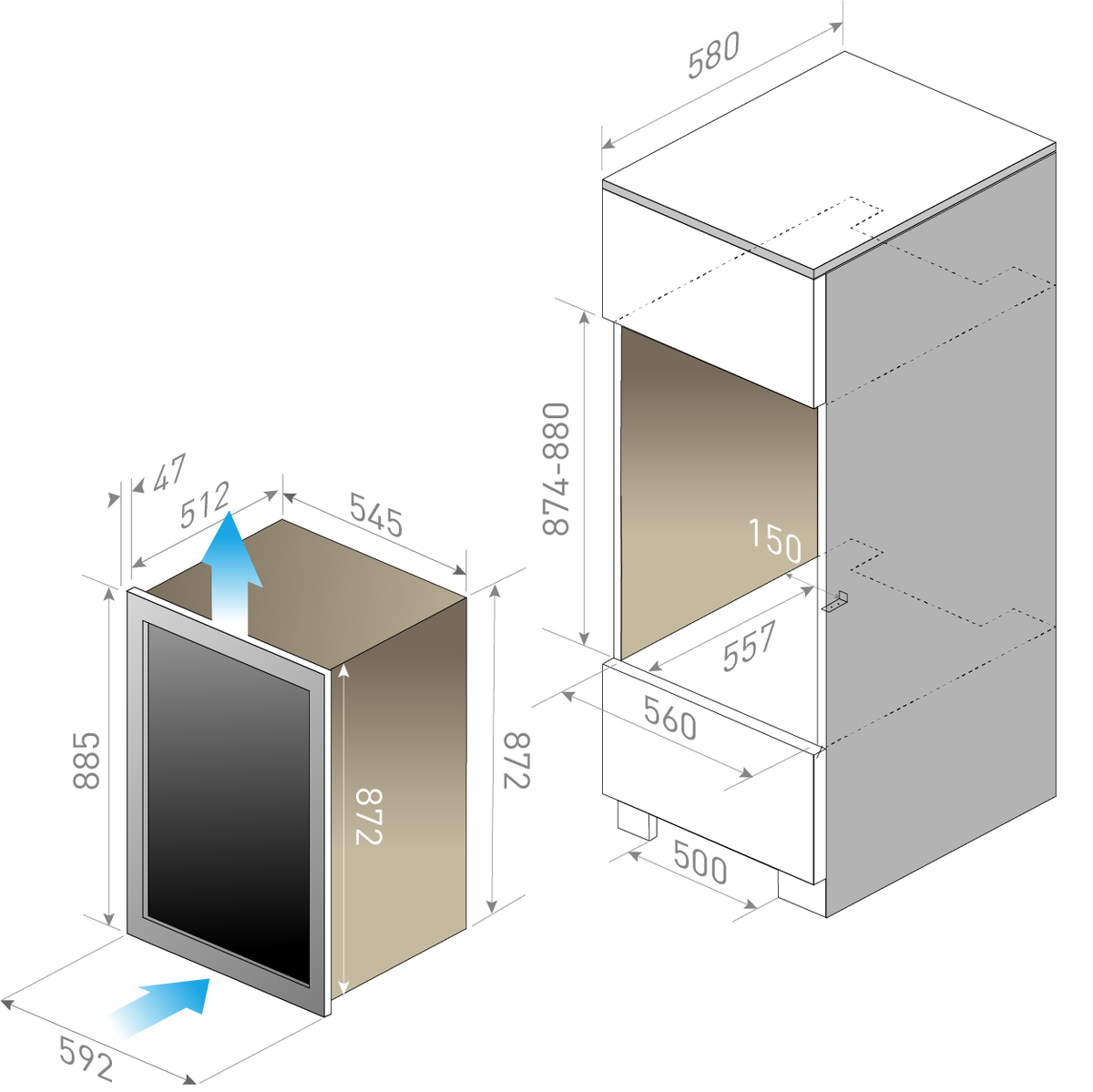

• Niche 88 cm : Built-in height in a niche of a column cabinet.

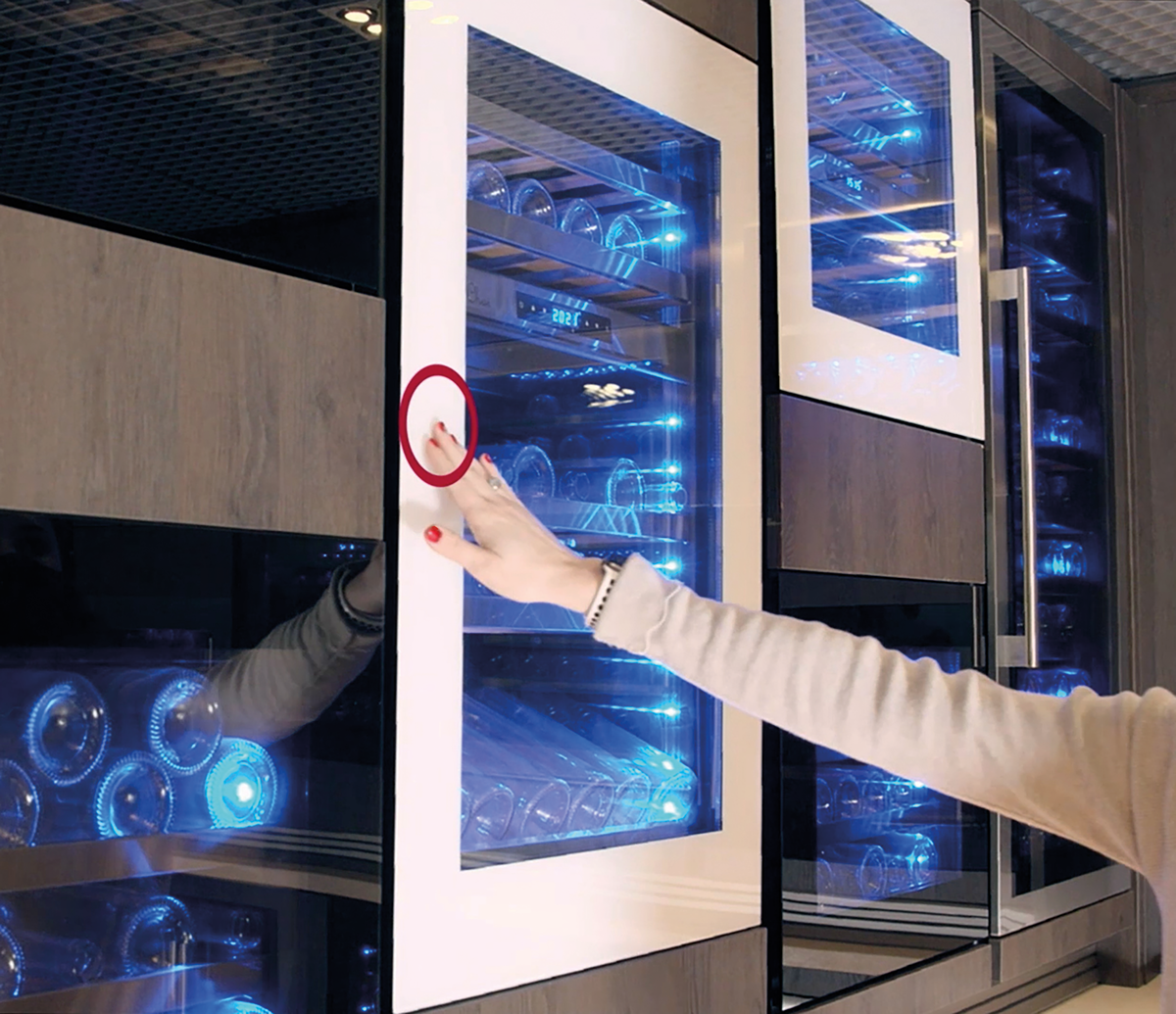

• Push-Open : Its design is ideal for kitchens without handles, and even with loaded hands you can open your cellar with a simple push thanks to the assisted opening. In the event of unintentional opening, the door closes automatically.
• Self-ventilated: This product does not need (like others) to have ventilation under the column and at the back of the column. An internal tangential ventilation system ensures the evacuation of the heat produced by the condenser and the compressor. It also saves time thanks to its simplified installation thanks to its front ventilation, just plug it in without the need to provide ventilation in the furniture.

Main features
Type of installation Built-in Self-ventilated
Type of conservation Service and conservation wine cabinet
Bordeaux bottle capacity 46
Zone 2
Color White
Energy class A
Temperature setting 13 bottles
Conservation 36 bottles
Trunk and door features
Trunk and door features Black color
Door frame White glass
Door glazing 3 glasses, anti-UV treated glass
Door hinge Right
Hinge type Pantograph type hinges
Reversible door Yes
Type of handle Push-Open (without handle)
Door Lock No
Adjustable feet 2
Inside features

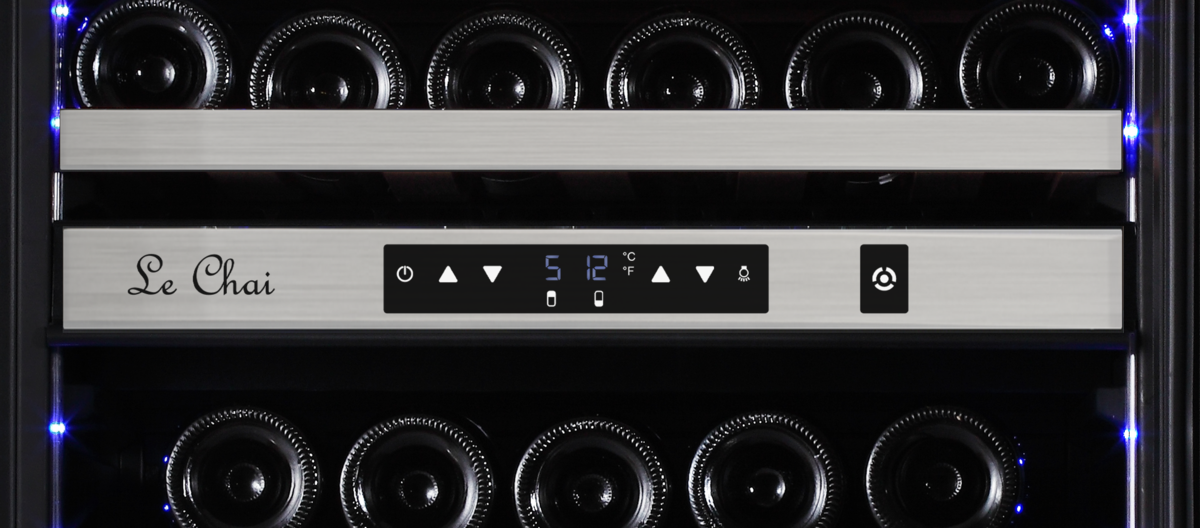

Control panel Sensitive with digital LED display
Display color Blue
Number of temperature zones 2
Temperature range +5°C - +20°C
Temperature upper zone +5°C - +10°C
Lower zone temperature • +10°C - +20°C
Interior lighting with switch Yes
Color interior lighting Blue LED
Total number of shelves 5
Telescopic shelves on rails 4
Display shelf 17040143
Type of shelf wood
Shelf finishing Stainless steel trim
Functions and safety
Charcoal filter No
Humidity system Yes
Anti-vibration system Yes
Open door alarm No
Temperature alarm (outside the t°C range) Yes
Winter function No
Soft close Yes
Automatic door closing Yes
Cellar register No
Multi-colour lighting function No
Alarme d'humidité (en dehors des plages) No
Automatic lock panel control No
Technical data
Energy class A
Climatic class ST (+16°C à +38°C)
Power consumption in kWh/24h 0,397
Power consumption in kWh/year 145
Sound level 40
Frequency (Hz) 50
Voltage (V) 230
Type of gas R600a
Type of cold Ventilated cooling
Logistics data
Packed dimensions (HxLxP) 970 x 660 x 660 mm
Unpacked dimensions (HxLxP) 885 x 592 x 559 mm
Gross weight with packaging (Kg) 53
Net weight of the product (Kg) 47
Energy label Notice Diagram Photo
